Displacement: The Heartbeat of Your Engine
Engine displacement, often measured in Cubic Centimeters (CC) or Liters (L), is the total volume swept by all pistons inside the cylinders. Think of it as the engine's "lung capacity"—a direct measure of its size and a primary indicator of its potential to produce power.
Behind the Numbers

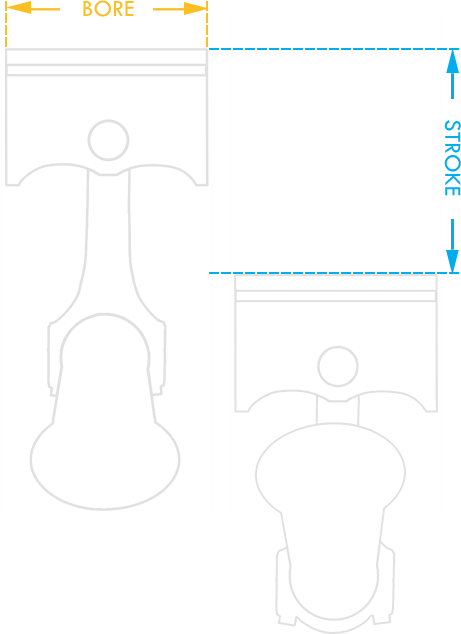

The volume of a single cylinder is calculated using a classic geometry formula:
- Bore
- The diameter of the cylinder. A larger bore allows for a wider piston and, crucially, larger valves, which improves airflow at high RPM.
- Stroke
- The distance the piston travels from its lowest point (BDC) to its highest point (TDC). A longer stroke generally results in higher torque.
- Number of Cylinders
- The total number of cylinders in the engine. More cylinders generally mean more power, but also more complexity and weight.
The Impact of CC on Performance
Power & Torque Potential
A larger displacement allows an engine to ingest a greater volume of air and fuel per cycle. This bigger combustion event directly translates to a higher potential for both horsepower and torque output.
Regulation & Racing Classes
In many countries and motorsports, engine displacement is a fundamental metric for vehicle classification, taxation, and defining competition classes, ensuring a level playing field.
Engine Character: Overbore vs. Overstroke
The ratio of bore to stroke defines an engine's personality.
- Overbore (Large Bore, Shorter Stroke)
- Characterized by a bore larger than its stroke (e.g., Formula 1 engines, Performance Bikes, etc.). This design favors high RPM and peak horsepower, as the shorter piston travel allows for faster engine speeds.
- Overstroke (Long Stroke, Smaller Bore)
- Features a stroke that is longer than its bore (e.g., diesel trucks, cruisers, etc.). This configuration excels at producing strong low-end torque, ideal for towing and everyday drivability.
